Technical specifications for PL - II Pirn Winding Machine

No of Spindles 2 Spindles Unit in 1 Head
4 Spindles Unit in 2 Heads
6 Spindles Unit in 3 Heads
8 Spindles Unit in 4 Heads
10 Spindles Unit in 5 Heads
Pirn Length 150mm to 250mm
Bunch 0 - 15 Meters
Winding Diameter Max. 30mm
Spindle Speed Max. 7000 RPM
Yarn Speed 350 Meter per Minute
Cone Length 35, 45, 50
No. of  Travers 6/10/13
Electric Motor
3 Phase, 440 Volts, 1440 RPM 		0.5 HP. for 2 Spindles Unit
1.0 HP. for 4 Spindles Unit
1.0 HP. for 6 Spindles Unit
1.5 HP. for 8 Spindles Unit
1.5 HP. for 10 Spindles Unit
Machine Size Length Width Height
2 Spindles Unit   73 cm   108 cm   158 cm
4 Spindles Unit   143 cm   108 cm   158 cm
6 Spindles Unit   210 cm   108 cm   158 cm
8 Spindles Unit   273 cm   108 cm   158 cm
10 Spindles Unit   338 cm   108 cm   158 cm

* Technical Specification subject to change as per quality of yarn and type of pirn is to be used.

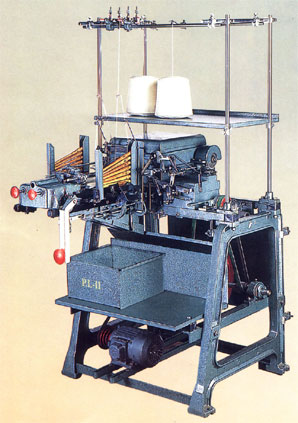

Automatic Pirn Winding Machine - "PL-II", " Priyalaxmi". For Winding Polyester, Cotton, Synthetic, Silk, Nylon, Filament, Terylene, Man Made Fibre, Woollen Yarn, Acrylic, Viscos, Zari etc...

Click here for Product Features And Technical Specifications. Click Here for product manual and catalogue
